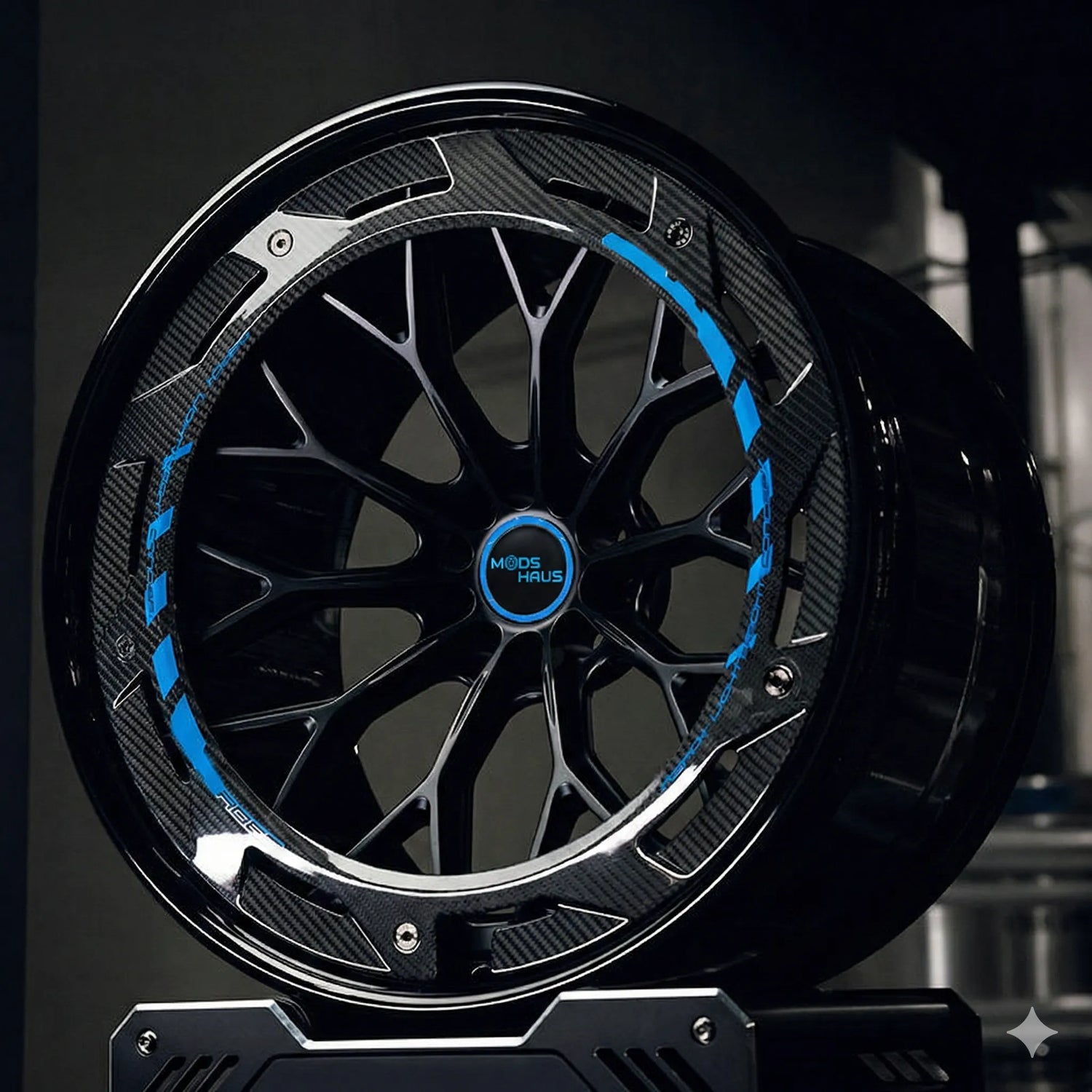

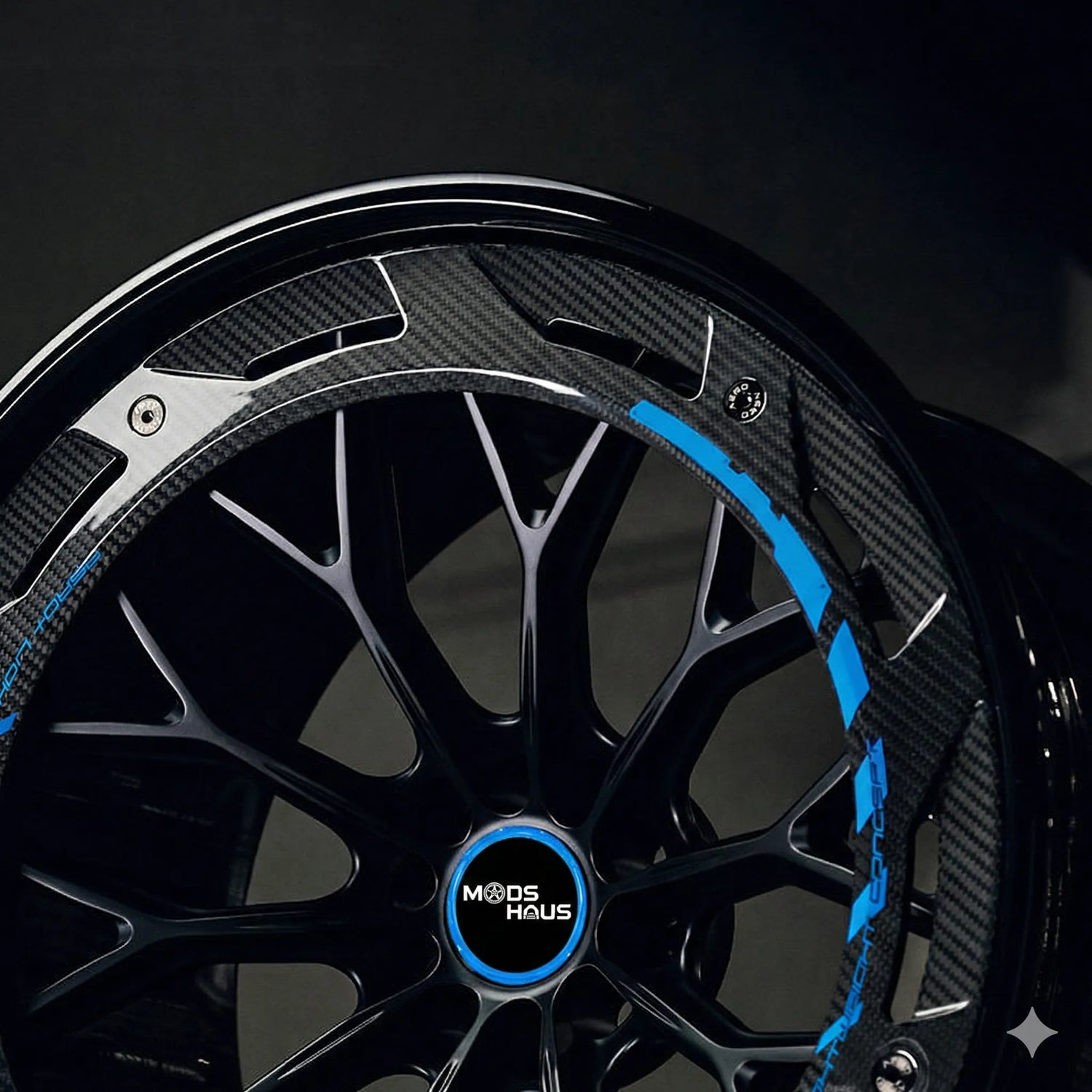

Set of ModsHaus MH-003CF Two-Piece Forged Wheel With Carbon Fiber Aero

Highlights

• Forged 6061‑T6 aluminum center mated to a carbon fiber aero ring for reduced weight and improved efficiency.
• Dynamic multi‑spoke design with deep concave profile and track‑inspired details.

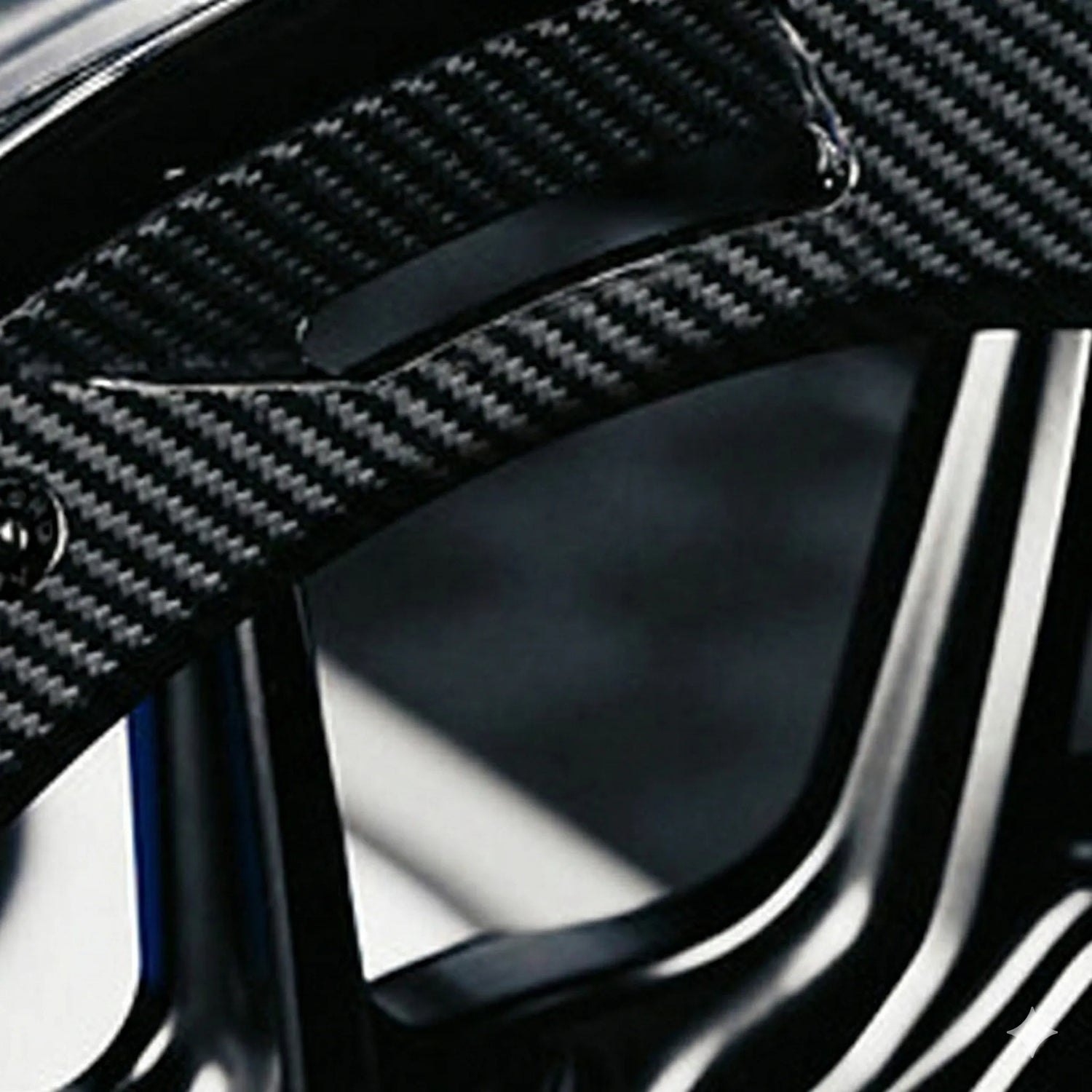

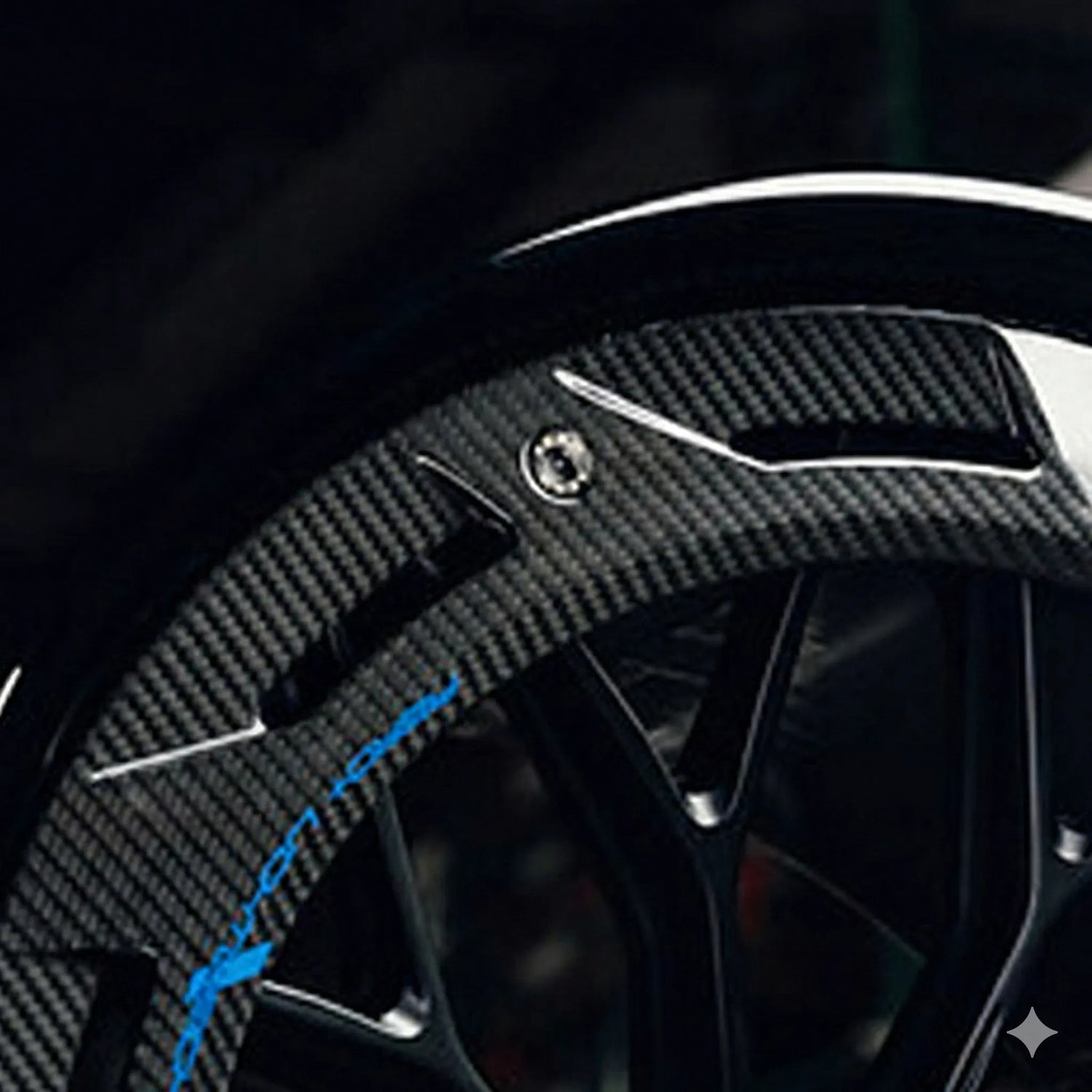

• Functional carbon fiber aero piece helps manage airflow and adds a unique visual signature on the street or track.
• Custom fitment: PCD, offset, and center bore machined to order within a 100–150 mm PCD and 0–45 mm ET range.
• Size range: 16"–20" diameters with 7J–13J widths for staggered and performance setups.
• Finish options: Gloss, matte, or satin centers with customizable colors and accents; carbon ring available with graphics or stealth look.
• Tested to JWL/VIA standards and produced in an ISO 9001‑certified facility.
• 5‑year warranty against manufacturing defects.

Ordering Guide (What we need)

• Diameter & Width (e.g., 19" × 9.5J).
• Bolt Pattern / PCD (e.g., 5×112, 5×114.3, 5×120, within the 100–150 mm range listed).
• Offset (ET): 0 to +45 mm, with common performance offsets like +20, +25, +35, +40, +45.
• Center Bore: hub‑centric machining for your specific vehicle.
• Finish: choose center color/finish, carbon ring finish, and any accent colors or graphics.
• Brake clearance details if you run big brakes (caliper brand/model or brake kit info).

Technical Specs

• Model: Mods Haus MH‑003CF.
• Construction: 2‑piece forged (forged aluminum center with attached carbon fiber aero ring).
• Material: 6061‑T6 aluminum center; carbon fiber aero component.
• Design: Multi‑spoke, deep concave face with carbon aero ring and exposed hardware.
• Diameter Range: 16"–20".
• Width Range: 7J–13J.
• Offsets (ET): 0–45 mm.
• PCD Options: 100–150 mm, covering popular 4/5‑lug and select 6‑lug patterns.
• Finishes: Customizable center colors/finishes; carbon fiber ring with optional contrast graphics.
• Standards: JWL/VIA tested; manufactured in an ISO 9001 environment.
• Warranty: 5 years against manufacturing defects.

Lead time, shipping & fitment notes

• Made to order: approximately 8 weeks to build, finish, and assemble before dispatch, with a target of about 6 weeks.
• Ships one wheel per box with protective packaging for the forged center and carbon ring.
• Always test‑fit wheels before mounting tires; once tires are mounted, wheels are typically non‑returnable.
• Hub‑centric rings and appropriate lug hardware may be required depending on your chassis.
• Load rating and final weight vary by diameter, width, and spec; detailed figures are available on request for your specific application.
